RWAC Rod, Thin Wall Barrel, Cup Top Anchor Pump
發布時間:2015-12-22 15:30:43   點擊:次   【打印】【關閉

    API-RWAC,Rod, Thin Wall Barrel, Cup Top Anchor Pump

RWAC Rod pump

The thickness of barrel wall is 3.175mm,it is

suitable for the well conditions of small tubing

size and need big demand of pump diameter .

 It can be designed according to the customer’s

  well.







  Product description:

      Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
     When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.

   Technical parameter list:

Specification

Pump diameter (in)

Barrel length  (ft)

Plunger length  (ft)

Stroke length  (ft)

Extension length  (ft)

Tubing size   EUE(in)

Sucker rod  size

20-125RWAC

Ø1.25”

 +2.1-10.4

 0.3-8.0

 1.2-9.0

  /

2-3/8”

 CYJ16

CYJ19

20-150RWAC

Ø1.50”

2-3/8”

25-200RWAC

Ø2.00”

2-7/8”

30-250RWAC

Ø2.50”

3-1/2”

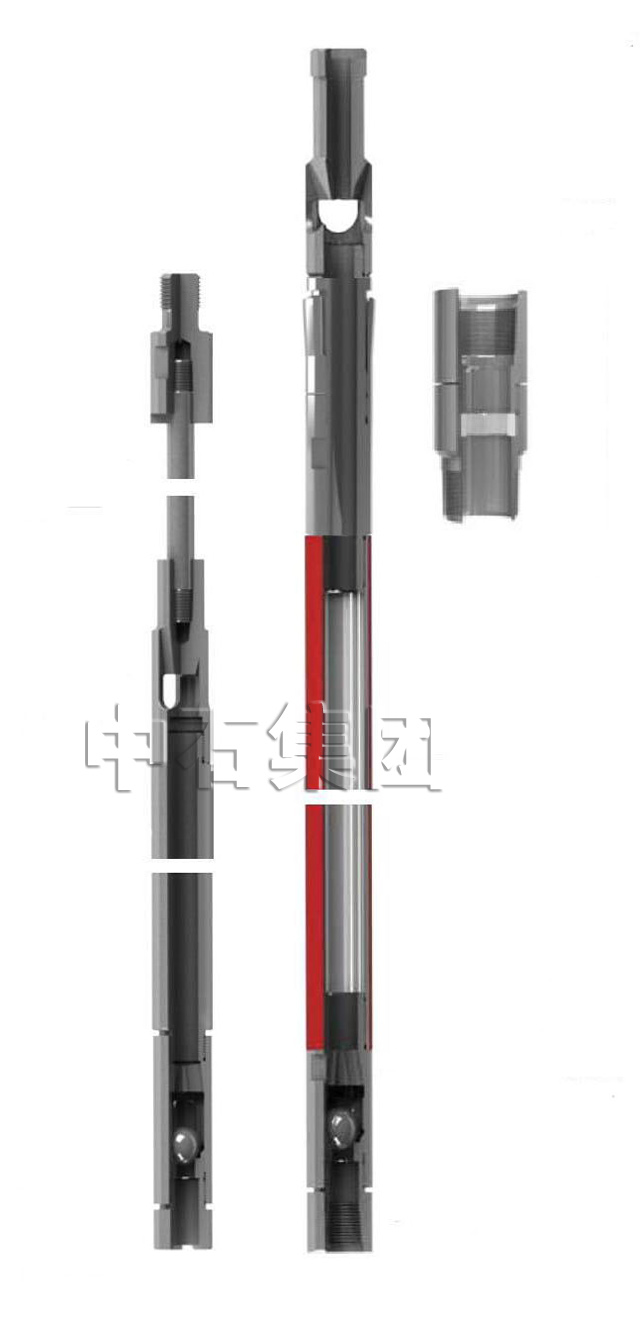

   Product structure display:

                               RWAC                                                                 RWAM
